pruduct

HY-H-006

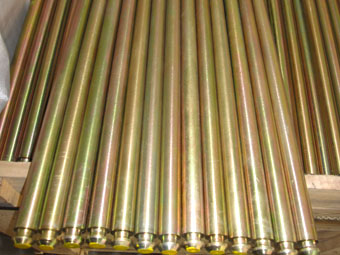

Item: Hollow axle
Pipe thickness: T1.5~ T2.8
Dia: 16mm, 18.9mm,21.5mm are regular, size of 16~22 are available
Length: Any length is available
Materials: 1010,1018,1020 are options
Finish: yellow galvanize, blue galvanize and powder coating

Workmanship: We can die cut each edge and cornor as client's request

Parameters of Hollow Axis
Item	Spec (mm)			Materials	Weight (kg)	Thickness of Plated	salt spray test（hours）
Item	Dia	Length	Thickness	Materials	Weight (kg)	Thickness of Plated	salt spray test（hours）
HY-H-001	17	465	1.60	1008	0.30	5~12 μm	72~96
HY-H-002	18	550	2.00	1008	0.43	5~12 μm	72~96
HY-H-003	19	575	2.75	1008	0.63	5~12 μm	72~96
HY-H-004	20	585	2.80	1010	0.69	5~12 μm	72~96
HY-H-005	21	626	2.80	1010	0.79	5~12 μm	72~96
HY-H-006	22	645	2.80	1010	0.86	5~12 μm	72~96

Parameter Compare
Item	Spec (mm)			Materials	Weight (kg)	Thickness of Plated	bend test	Max tension load test
Item	Dia	Length	Thickness	Materials	Weight (kg)	Thickness of Plated	bend test	Max tension load test
Market axis	19	575	2.75	1008	0.71	/	/	15/KN
Our axis	19	575	2.75	1008	0.63	5~12 μm	1500N	22/KN

Welcome your OEM design and specifications, we can produce as your need and request.
