HY-Axle-packing

Item: Hollow axle

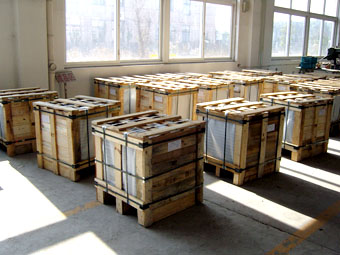

Package: 700~1000pcs per wooden box;
　　20~24 pallets per container
　　1*20GP: 19000pcs~25000 pcs
Specific packing info will be various as the specification of axles

Parameters of Hollow Axis
Item	Spec (mm)			Materials	Weight (kg)	Thickness of Plated	salt spray test（hours）
Item	Dia	Length	Thickness	Materials	Weight (kg)	Thickness of Plated	salt spray test（hours）
HY-H-001	17	465	1.60	1008	0.30	5~12 μm	72~96
HY-H-002	18	550	2.00	1008	0.43	5~12 μm	72~96
HY-H-003	19	575	2.75	1008	0.63	5~12 μm	72~96
HY-H-004	20	585	2.80	1010	0.69	5~12 μm	72~96
HY-H-005	21	626	2.80	1010	0.79	5~12 μm	72~96
HY-H-006	22	645	2.80	1010	0.86	5~12 μm	72~96

Parameter Compare
Item	Spec (mm)			Materials	Weight (kg)	Thickness of Plated	bend test	Max tension load test
Item	Dia	Length	Thickness	Materials	Weight (kg)	Thickness of Plated	bend test	Max tension load test
Market axis	19	575	2.75	1008	0.71	/	/	15/KN
Our axis	19	575	2.75	1008	0.63	5~12 μm	1500N	22/KN

Welcome your OEM design and specifications, we can produce as your need and request.
